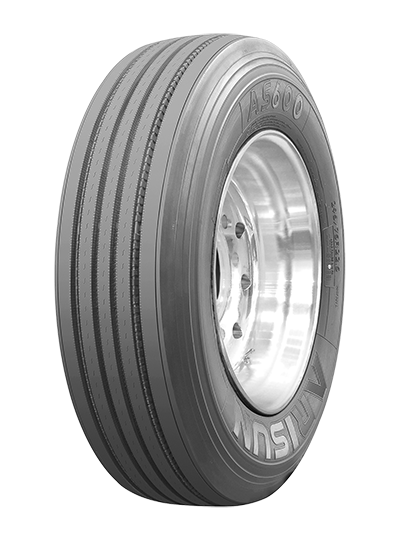

Arisun AS600

Arisun AS600

Computer aided FEA design provides exceptional handling ability with wide footprint design
Advanced mixing technology offers excellent rubber compounds to produce high mileage and longer tire life
Advanced 5-rib tread design enhances even wear, wet traction & reduced rolling resistance
The advanced 4-belt casing design under the tread gives a higher level of casing durability and retreadability
Advanced engineering and building machines produce uniformity and harmonic balanced steer tires

Description

Size	LR/PR	Tread Depth (32ND)	Service Index	Standard Rim	Overall Diameter (inch)	Section Width (inch)	Max. Load Capacity at Cold Inflation Pressure				Revs per Mile	Static Loaded Radius (inch)
							Single		Dual
							(LBS)	(PSI)	(LBS)	(PSI)
11R22.5	G/14	18	144/142L	8.25	41.5	11.0	6175	105	5840	105	500	19.3
11R22.5	H/16	18	146/143L	8.25	41.5	11.0	6610	120	6005	120	500	19.3
295/75R22.5	G/14	18	144/141L	9.00	39.9	11.7	6175	110	5675	110	524	18.7
11R24.5	G/14	18	146/143L	8.25	43.5	11.0	6610	105	6005	105	477	20.3
11R24.5	H/16	18	149/146L	8.25	43.5	11.0	7160	120	6610	120	477	20.3
285/75R24.5	G/14	18	144/141L	8.25	41.3	11.1	6175	110	5675	110	503	19.4

* We reserve the rights of final interpretation and modification
